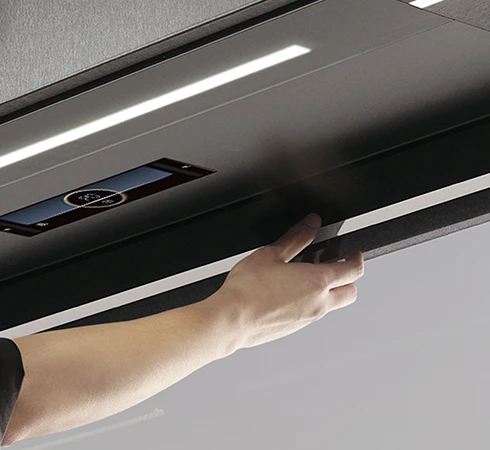

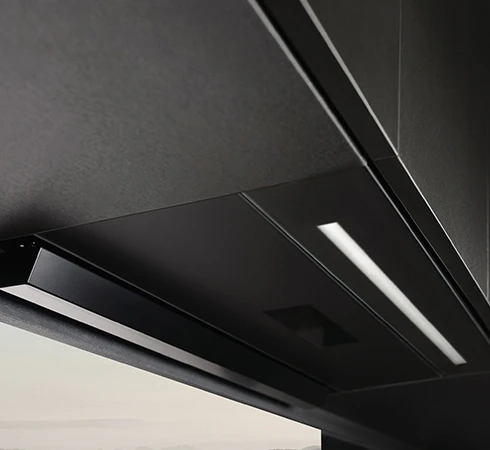

RECESSED FOLD SYSTEM

Drawing inspiration from aircraft landing gear design, this folding mechanism ensures robust and reliable operation. Certified to withstand 50,000 cycles of testing.

AutoSense Purification

Automatically purifies the air when quality below standards, keeping your kitchen fresh.

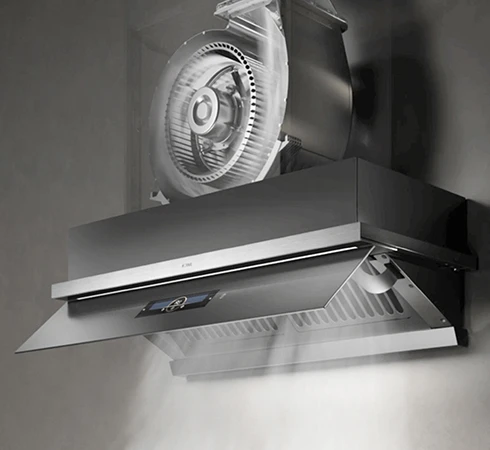

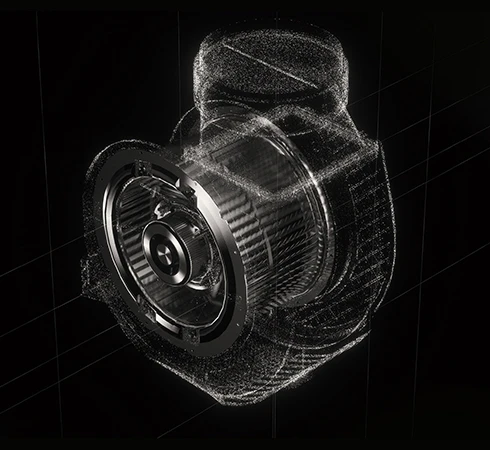

powerful airflow

1700m³/h IEC Air Flow 1450Pa Static Pressure The optimised motor system drives the impeller to rotate at high speed, automatically boosting output power to deliver a powerful airflow.

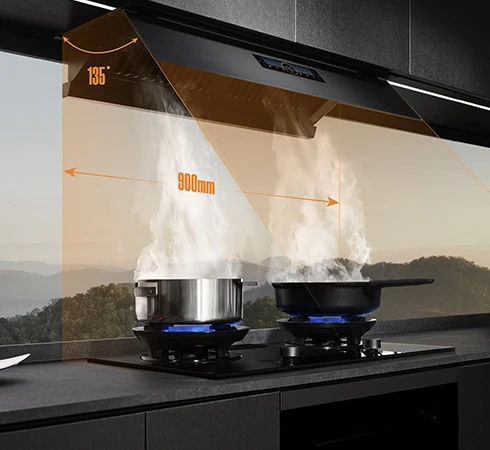

Ultra Capture Force

Featuring a 135° automatic smoke barrier plate and it forms a capture barrier that swiftly intercepts smoke, prevents overflow and efficiently eliminates odours.

Touch Control

The large screen unfolds before your eyes, making touch control even more convenient.

Gesture Control

Control with contactless gestures, avoiding grease contamination.

Nautilus Shell

Reduced air resistance ensures quiet operation. Combined with a million honeycomb structure to reduce noise and vibration.

Quick-Detach Grease Cup & Oil Filter

Tool-free disassembly makes kitchen cleaning simpler.

Technical Parameters

Certification: SAA

Product Size(mm)(W×D×H): 897x330x650

Power Supply: 220-240V 50Hz

Max Static Pressure(Pa): 1450

Max Airflow(m³/h): 1700（IEC 61591）

Noise Level(dB): High:43 Low:40

Illumination Power in LED: 5.5W

Input Power: 430W

Motor: BLDC Motor

Control Type: Color display panel & Wave

Delay Shutoff: 2mins

Intelligent Air Management: Support

Motor power(W): 425W

No. of Speeds Fan Control: 2+Auto

Special Features: Clean Mode
