Convertible Broaden Air Inlet, extracting the fumes before they spread

The open-top air inlet of 900mm width air intake design, suctions the oil fumes downward without pressure relief, locking up all grease and fumes.
According to the principle of “Golden fume control zone”, the air inlet is set at a height of 580mm from the cooktop panel, which can extract all fumes before they expand on a large scale, without affecting the oxygen supply of the cooktop or the user´s cooking.

Speed-up Straight Extraction System, direct suction and exhaustion

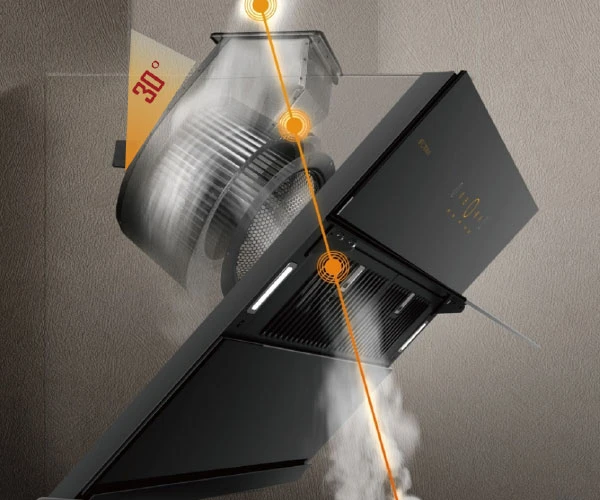

The fan tilt angle is adjusted to 30° in design, so that 4 crucial points (cooktop, air inlet, volute and air outlet) can form a straight line for direction suction and fume exhaustion.

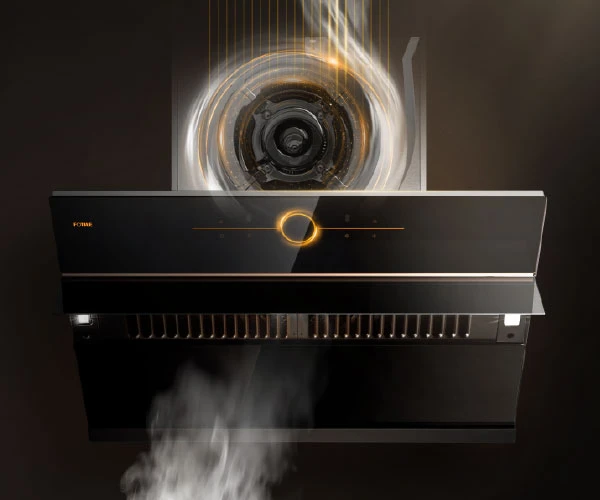

The Nautilus Air Passageway design, with the superpower of the impeller, is set in the air inlet and turbo port to enhance the fume extraction and accelerate the fume exhaustion.

Strong core creates a perfect balance of power and quietness

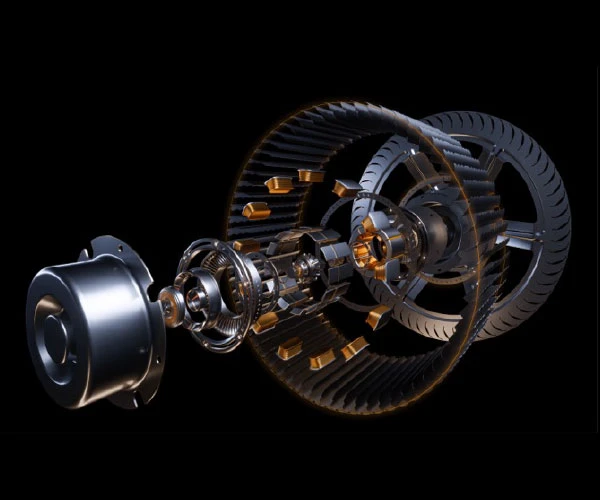

BLDC variable frequency motor means a powerful guarantee of strong suction and exhaustion.
The original manufacturer BLDC inverter motor, combining strong power with considerate care, ensures the fumes no escape with the consideration of “less disturbing” effect.

Filter clean, smell fresh

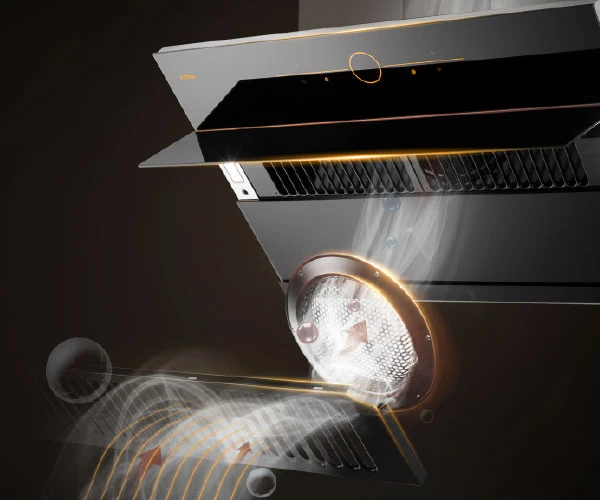

Fotile unique triple oil filter technology perfectly separates grease and reduces the particulate matter up to 2 times that of ordinary hoods
The two-section grille filter is easy to take and clean, returning the kitchen by clean air without fume odour.

Smart Life, innovative technology

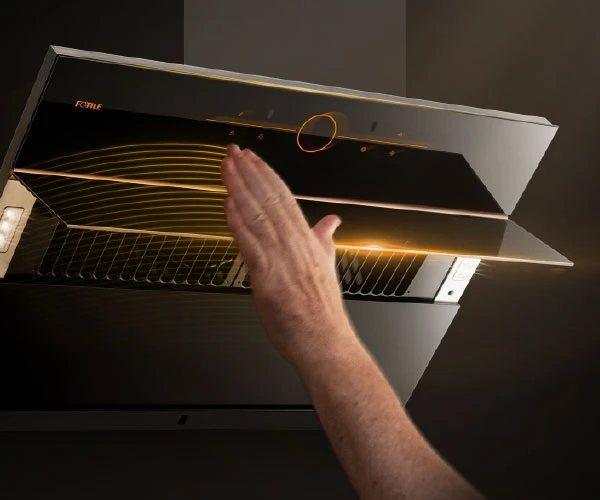

The gesture detection function allow you to start the rangehood by waving hands. Moreover, Intelligent Air Management function guards the air health for your kitchen, and the Memory function helps catering to your operating habbits.

Technical Parameters

Certification:

SAA

Product Size(mm)(W×D×H):

895x629x440

Power Supply:

220-240V 50Hz

Max Static Pressure(Pa):

1290

Max Airflow(m³/h):

1440

Min. Noise Level(dB):

48

Illumination Power in LED:

3w

Input Power:

BLDC

Oil Filter:

Removable

Control Type:

Touch+action

Delay Shutoff:

2 min

Screen Lock:

Y

Intelligent Air Management:

N

Oil Filtration Rate:

92%

Smell Reduction Rate:

97%

Packing-Box Size(mm)(W×D×H):

1015*705*545

Motor power(W):

258

No. of Speeds Fan Control:

2+T

Automatic Turbo System:

Y
