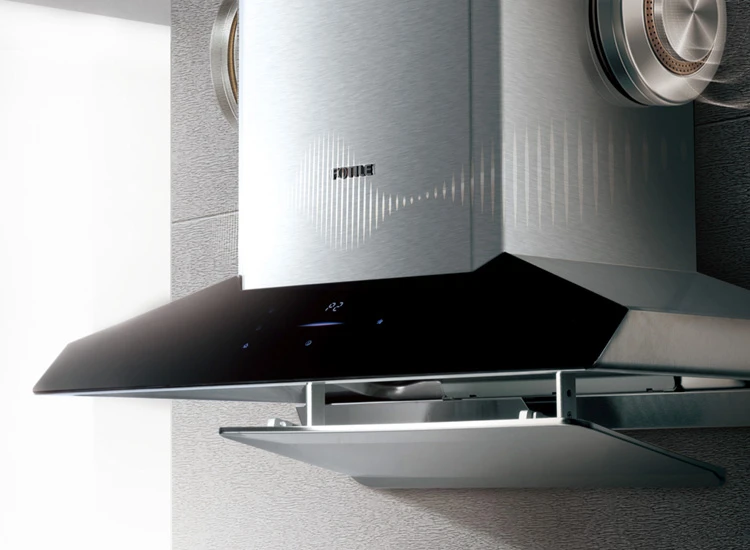

Intelligent Self-Adjusting according to the volume of cooking fumes

Equipped with Intelligent Self-Adjusting Smart Wing-like Surround Suction Plate, which is able to adjust its elevation by 8-12cm according to the volume of cooking fumes, closer to the “golden fume control zone” where the fumes spread on a large scale, ensuring that the butterfly wing can fully intercept the fumes in different speeds.

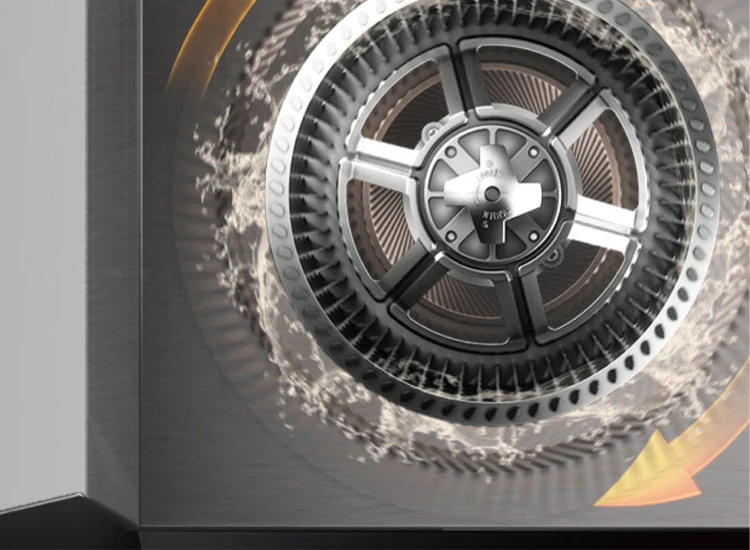

DC variable frequency motor, super-strong core power

DC variable frequency motor, offering strong power, with maximum static pressure up to 1210Pa that overcomes wind resistance effortlessly; more powerful and efficient smoke extraction, ensuring smooth extraction even in peak hours.

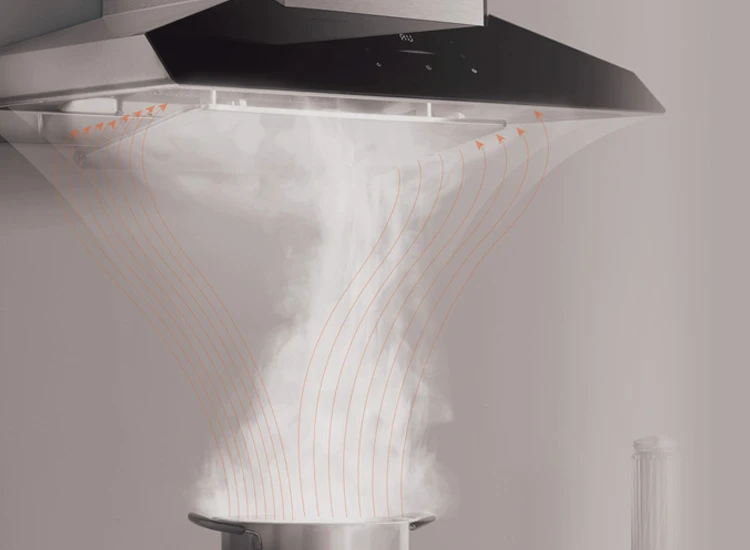

Wider grease and smoke control zone

The “Butterfly Wing Ring Suction technology” allows an “expansion” of the grease and smoke control zone in FOTILE W, which implements the 3D expansion of grease and smoke control capacity from horizontal to vertical, increasing the negative core pressure area, effectively reducing the smoke escape.

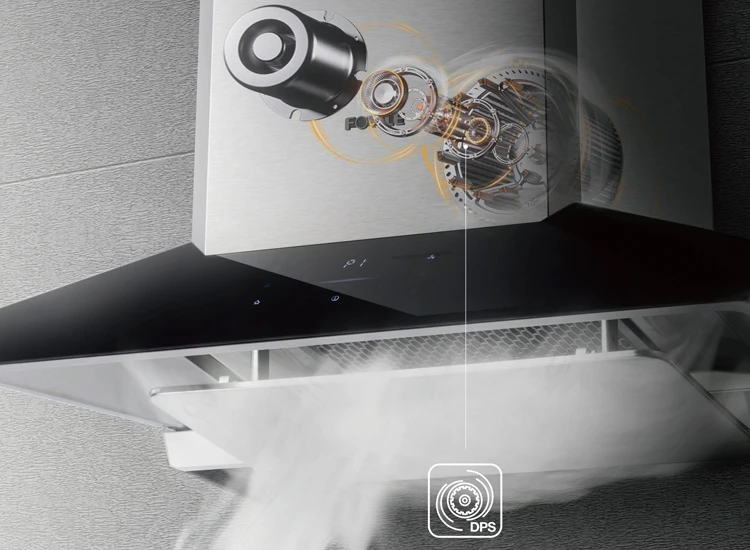

Auto Extraction Resistance Detection

Poor fume extraction during peak cooking hours will lead to fume backflow. FOTILE W automatic cruise turbo function provides real-time detection. When the exhausting environment is not smooth, and the resistance becomes large, the automatic turbo system is on for rapid pressurization with ultra-powerful smoke exhaustion. Equipped with the innovative Bionic Wings Impeller design, it ensures quick and smooth exhaustion even in peak hours.

Smart Life, Innovative Technology

Infrared sensor helps detecting the smoke concentration, ensuring powerful and quiet ventilation with perfect speed.
Delay Off Function, keeping the hood on for a while longer.

Technical Parameters

Certification:

SAA

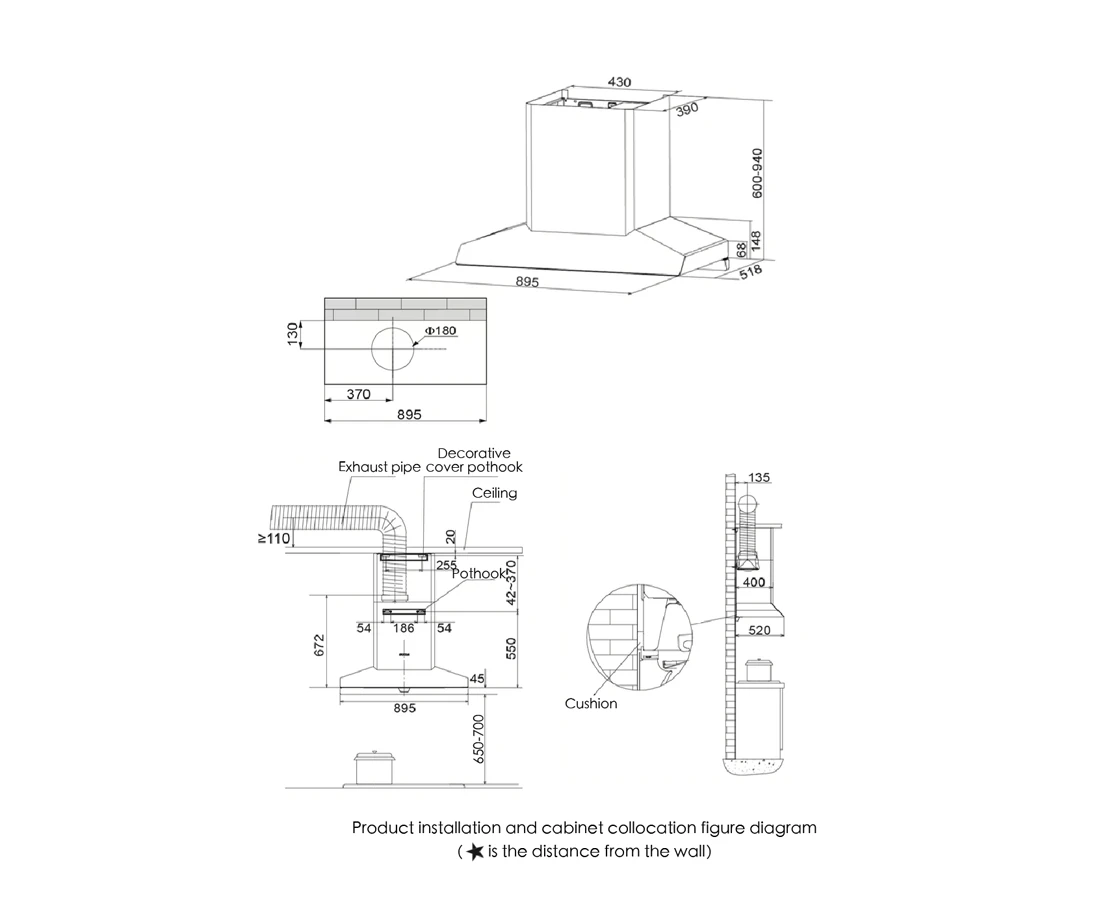

Product Size(mm)(W×D×H):

895*518*(600-940)

Power Supply:

220-240V 50Hz

Max Static Pressure(Pa):

1210

Max Airflow(m³/h):

1000/670

Noise Level(dB):

47/38

Illumination Power in LED:

5W*1

Motor:

BLDC

Oil Filter:

Removable

Control Type:

Touch + Motion

Delay Shutoff:

2min

Screen Lock:

N

Intelligent Air Management:

N

Oil Filtration Rate:

94%

Smell Reduction Rate:

97%

Motor power(W):

315

No. of Speeds Fan Control:

Turbo+2

Automatic Turbo System:

Y

Boost/Auto Turbo airflow (m³/h):

1590
