AIS technology expands the scope of smoke capture and achieves precise capture

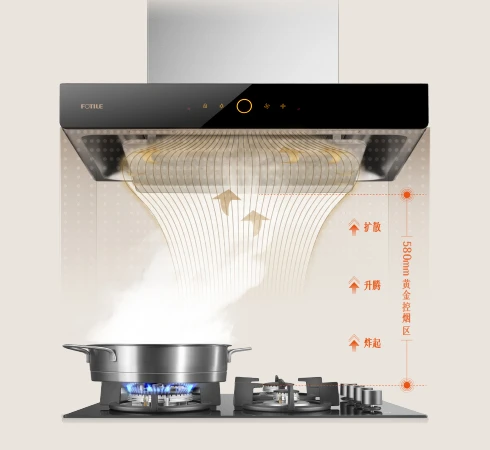

The butterfly wing ring suction plate design makes the smoke control area sink, closer to the 580mm gold smoke control area, and gathers the diffused oil smoke. At the same time, the traditional intermediate suction is upgraded to a four-sided ring suction. The fumes generated by the outer burner, which used to be a headache for ordinary range hoods, can also be easily controlled from now on.

The power is surging enough, so why not be afraid of big fumes

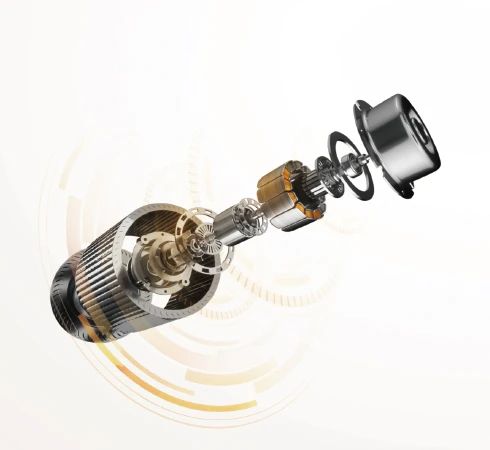

The DC variable frequency motor can generate an ultra-fast rotation speed of 100,000 revolutions per minute, bringing a strong suction force of 1090m3/h*. This means that large fumes can be inhaled quickly. At the same time, the Fangtai DC variable frequency motor is designed by the original factory, which is more adaptable and stable in operation. In response to the huge oil fume produced by the high temperature of stir-frying, Fangtai also has a targeted ´instant suction´ mode.

The sound should be low-key and the smoke should be strong

The DC variable frequency motor brings a static pressure of up to 900Pa, and the infinitely variable speed meets the resistance to match the stronger exhaust pressure. It is suitable for the pipeline environment of different houses, not afraid of long flue and many turns, and the oil fumes can be discharged smoothly. Originally designed DC variable frequency motor, bionic wing impeller, micro-porous noise reduction for aerospace applications, and smooth Nautilus suction duct to create soft and low noise, allowing you to immerse yourself in the fun of cooking.

Filter clean, smell fresh

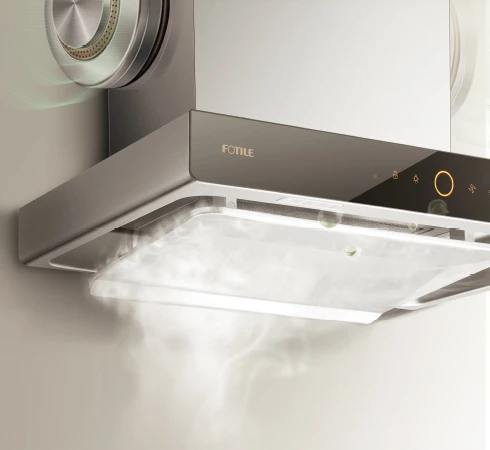

Fangtai´s unique triple oil filter technology perfectly separates grease, reduces particulate matter up to 2 times that of ordinary hoods, and returns the kitchen´s clean air with a magical ´filter net´. The taste is more in place. The first wind guide structure, no turbulence and no blowing.

*We promise that this product is brand new and unopened, so we refuse all returns or exchanges except for damage caused during transportation. Once the product is opened, we refuse returns. Therefore, if you find any damage caused by the courier after receiving the product, please contact us in time.

Technical Parameters

Certification:

SAA

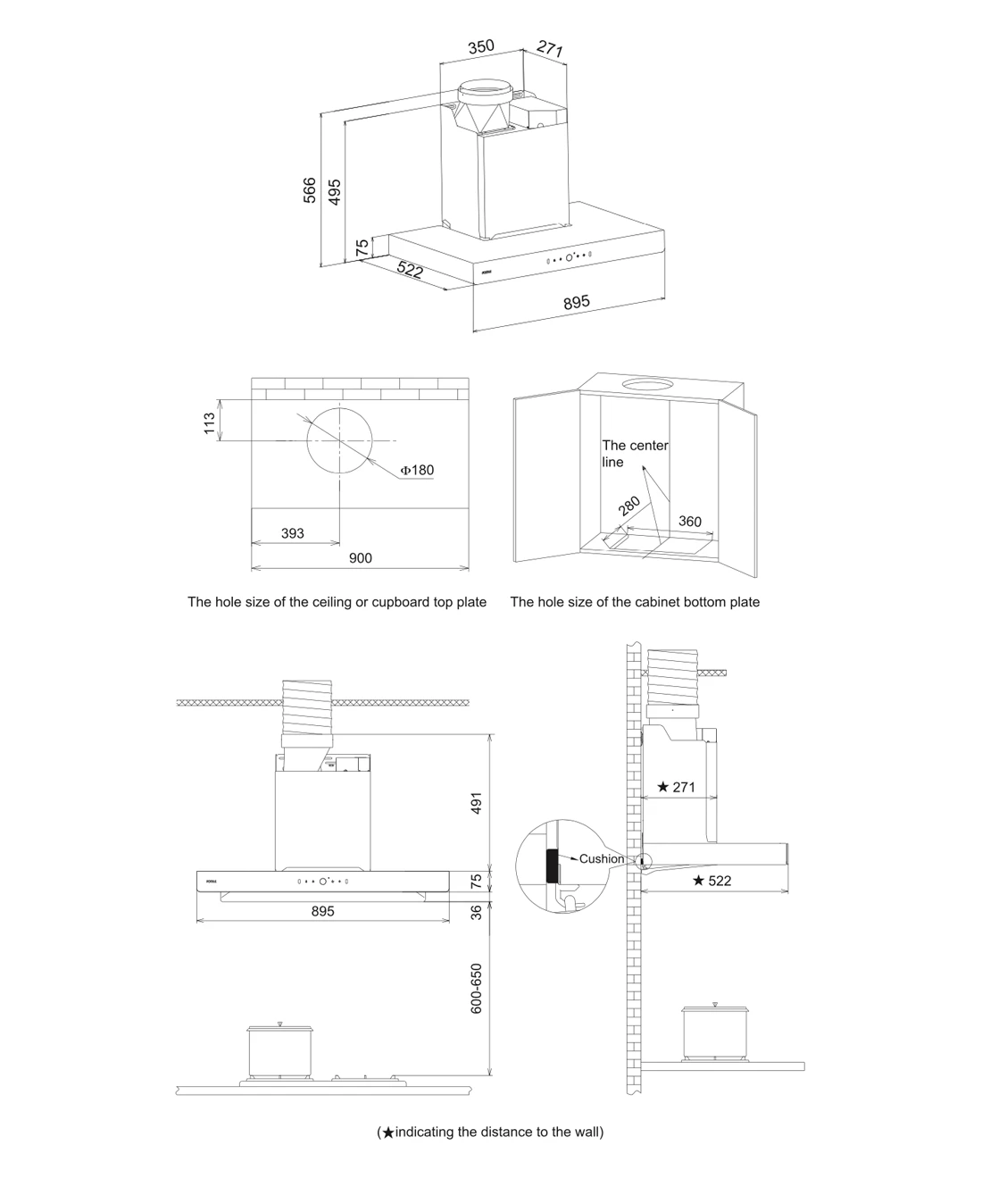

Product Size(mm)(W×D×H):

895x522x566

Power Supply:

220-240V 50Hz

Max Static Pressure(Pa):

900

Max Airflow(m³/h):

1180（IEC 61591）

Noise Level(dB):

56

Illumination Power in LED:

3W*2

Motor:

BLDC

Oil Filter:

Removable

Control Type:

Touch + Motion

Delay Shutoff:

5min

Screen Lock:

Y

Intelligent Air Management:

N

Oil Filtration Rate:

96%

Smell Reduction Rate:

99%

Motor power(W):

294

No. of Speeds Fan Control:

3+Boost

Automatic Turbo System:

N

Package Size (WxHxD) (mm):

1005*605*630
