Clean-Air

With 23 years of kitchen appliance R&D experience, FOTILE still attaches importance to research into the basic principles of fume management. Through innovations in core range´s technology, FOTILE maintains its position as an industry leader. FOTILE´s research team dissected the principles of fume intake and exhaust. They discovered that range hoods work in three stages: fume capturing, fume filtration, and fume extraction. Other brands on the market only pay attention to smoke extraction, emphasizing suction power whilst ignoring the importance of trapping and ventilating fumes. This leaves their products unable to completely resolve kitchen fume problems. After years of in-depth research, FOTILE has invented comprehensive &all-in-one& , core technology that provides an effective solution to fume problems.

Spotlight on the Golden Collection Zone A 3D Defense Line Preventing Smoke From Escaping

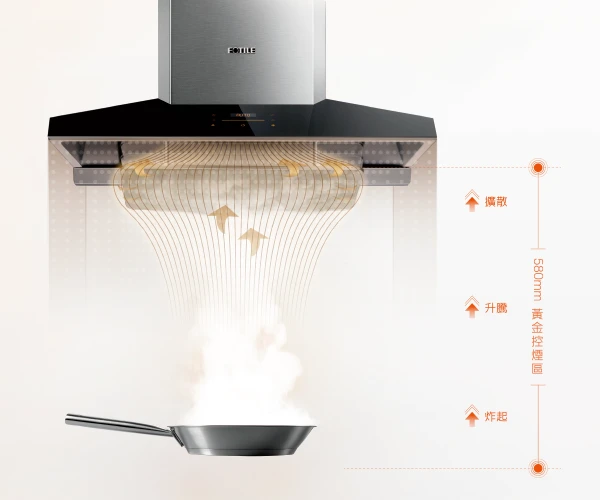

After hundreds of experiments, FOTILE discovered that grease and smoke move through three different stages: spluttering, rising, and spreading. The optimal height for suction and extraction before smoke spreads is 58 cm. Intelligent self-adjusting technology can lower the FOTILE W Pro´s smoke controls by 8 to 12 cm* to approach the golden smoke control zone and effectively remove grease and smoke.

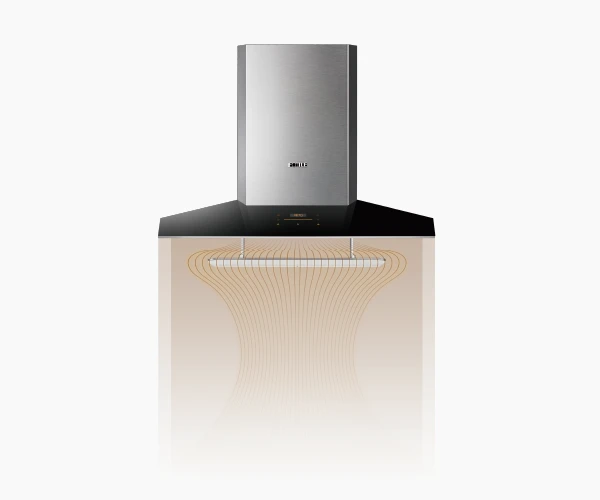

AIS Intelligent Self-Adjusting Technology Moving Closer Means There is No Place for Fumes to Run

Wing-like surround suction plate 2.0 technology guides fumes toward the fume collection chamber, greatly expanding the range of fume control. Depending on different fume conditions, the FOTILE W Pro can intelligently adjust its settings to move the wing-like surround suction plate closer to the &Golden Collection Zone&. In this way, grease and smoke are controlled at the source.

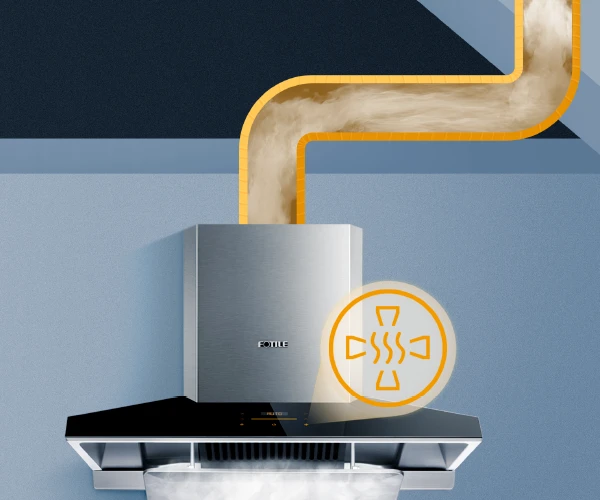

Smoke Extraction Technology

Overly long flues or too many turns in the flue will result in poor ventilation, greatly reducing smoke extraction. The FOTILE W Pro´s automatic smoke guide uses real-time smoke detection to automatically increase air pressure when smoke extraction faces resistance to always ensure that smoke travels smoothly for effective ventilation.

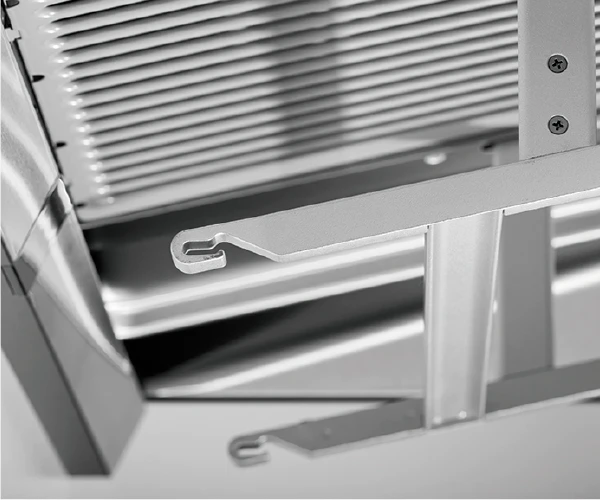

Easy Clean-Up Design

Cleaning the kitchen has always been the headache on one´s list of chores. Range hoods tend to be the hardest to clean, especially those with dense mesh and difficult-to-remove grease traps. To implement its design concept of making cleaning easier, FOTILE W Pro has overhauled the range hood´s grease filters, body and coatings. This makes it just as easy to clean the range hood as any other kitchen appliance.

*We promise that this product is brand new and unopened, so we refuse all returns or exchanges except for damage caused during transportation. Once the product is opened, we refuse returns. Therefore, if you find any damage caused by the courier after receiving the product, please contact us in time.

Technical Parameters

Certification:

SAA

Product Size(mm)(W×D×H):

896x515x(640-960)

Power Supply:

220-240V 50Hz

Max Static Pressure(Pa):

400

Max Airflow(m³/h):

1250（IEC 61591）

Noise Level(dB):

52

Illumination Power in LED:

2W*1

Motor:

AC

Oil Filter:

Removable

Control Type:

touch

Delay Shutoff:

2min

Screen Lock:

N

Intelligent Air Management:

N

Oil Filtration Rate:

92%

Smell Reduction Rate:

97%

Motor power(W):

270

No. of Speeds Fan Control:

2+Turbo

Automatic Turbo System:

Y

Package Size (WxHxD) (mm):

1005*745*615
